Getting started

Installation

You can install the most recent stable version of transit using PyPI or the development version from GitHub.

Prerequisites

Whichever method you choose, you’ll need to make sure that you first have Boost installed. On Linux:

sudo apt-get install libboost-dev

On Mac:

brew install boost

Note

Chances are high that transit won’t work on Windows right now because it hasn’t been tested at all but feel free to try it out at your own risk!

You’ll also need a working scientific Python installation (including NumPy). I recommend the Anaconda distribution if you don’t already have your own opinions.

Stable Version

The simplest way to install the most recent stable version of transit is using pip:

pip install transit

If you installed Boost in a strange place, specify that location by running (sorry to say that it’s pretty freaking ugly):

pip install transit \
    --global-option=build_ext \
    --global-option=-I/path/to/boost

Development Version

To get the source for the development version, clone the git repository:

git clone https://github.com/dfm/transit.git
cd transit

Then, install the package by running the following command:

python setup.py install

If installed Boost in a non-standard location, you can specify the correct path using the install command:

python setup.py build_ext -I/path/to/boost install

Testing

To run the unit tests, install nose and then execute:

nosetests -v transit.tests

All of the tests should (of course) pass. If any of the tests don’t pass and if you can’t sort out why, open an issue on GitHub.

A Simple Example

In this example, we’ll build a simple Earth-like transit and plot the result:

import transit
import numpy as np
import matplotlib.pyplot as pl

# Build the transiting system.
s = transit.System(transit.Central())
body = transit.Body(r=0.009155, period=365.25, t0=0.99, b=0.2, e=0.0167)
s.add_body(body)

# Compute the light curve integrated over a Kepler long cadence
# exposure time.
texp = 1626.0 / 86400.0
t = np.arange(0, 2, texp)
f = s.light_curve(t, texp=texp)

# Plot the results
pl.plot(t, (f-1) * 1e6, ".k")

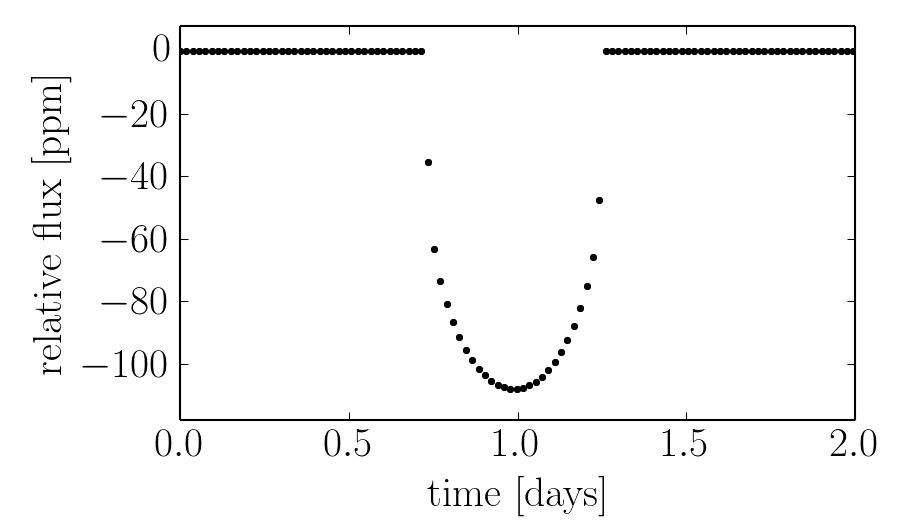

This should produce a figure that looks something like this:

../_images/simple.png

For a list of all the available options, see API documentation.
